Cascadia Subduction Zone Tsunami

Source: Washington State Dept. of Natural Resources

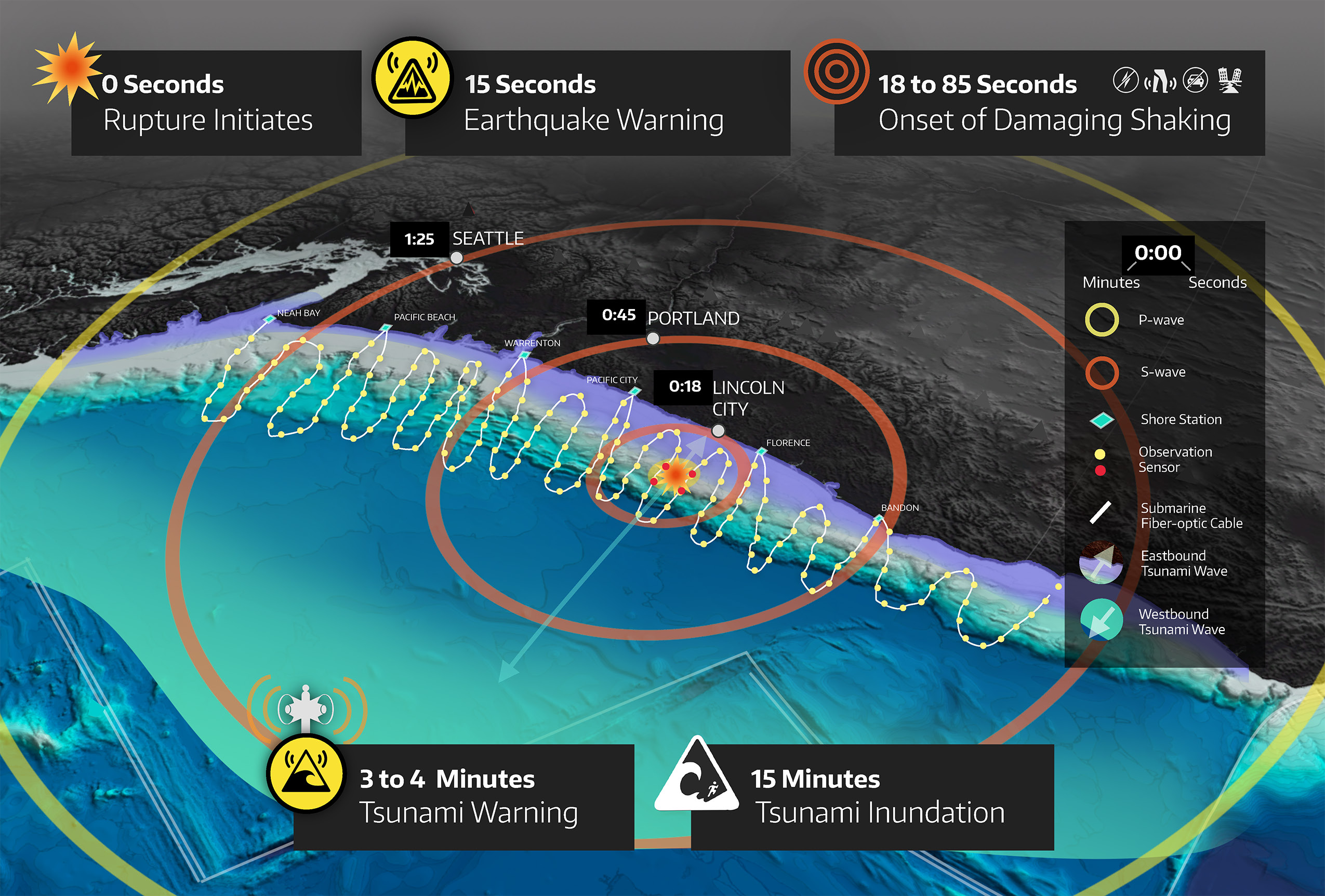

Proposed Sensor Network

Source: Cascadia Offshore White Paper

Cascadia Subduction Zone: Tsunami Early Warning

• Predict tsunami wave propagation by inversion of near-field pressure data recorded during a megathrust rupture
• Quantify uncertainty in inverse solution via framework of Bayesian inference
• Invert for the spatiotemporal seafloor motion (time-dependent boundary condition) using a (linearized) acoustic-gravity model in the (compressible) deep ocean
• Challenges
• Forward problem involves 3D space + time
• Parameter is a 2D space + time field
• Hyperbolic forward PDEs don't easily lend themselves to surrogates
• Inversion computation must be done in real time (i.e. seconds)

Forward Problem

Coupled Acoustic-Gravity wave equations:

\[\begin{cases} \rho \frac{ \partial\boldsymbol{u}}{\partial t} + \nabla p = \boldsymbol{0}, \frac{1}{K} \frac{ \partial p}{\partial t} + \nabla \cdot \boldsymbol{u} = 0, & \Omega \times (0,T)\nonumber\\ p = \rho g \eta, \frac{ \partial\eta}{\partial t} = \boldsymbol{u} \cdot \hat{\boldsymbol{n}}, & \Gamma_s \times (0,T) \nonumber\\ \boldsymbol{u} \cdot \hat{\boldsymbol{n}} = -\frac{\partial b}{\partial t}, \text{\textcolor{BF5700}{← parameter}} & \Gamma_b \times (0,T) \nonumber\\ \boldsymbol{u} \cdot \hat{\boldsymbol{n}} = Z^{-1} p, & \Gamma_a \times (0,T)\nonumber \end{cases} \]

• Velocity: \(\boldsymbol{u}(\boldsymbol{x}, t)\), Pressure: \(p(\boldsymbol{x}, t)\), Surface Height: \(\eta(\boldsymbol{x}, t)\)
• Bulk modulus \(K\), density \(\rho\), \(Z = \rho c\), \(c = \sqrt{K/\rho}\)
• Bathymetry \(b(\boldsymbol{x}, t)\); homogeneous ICs
• Observations of pressure \(p\) at seafloor sensors

Implemented in MFEM

Inverse Problem

• Given pressure recordings from sensors on the seafloor, infer the seafloor motion along the fault line.

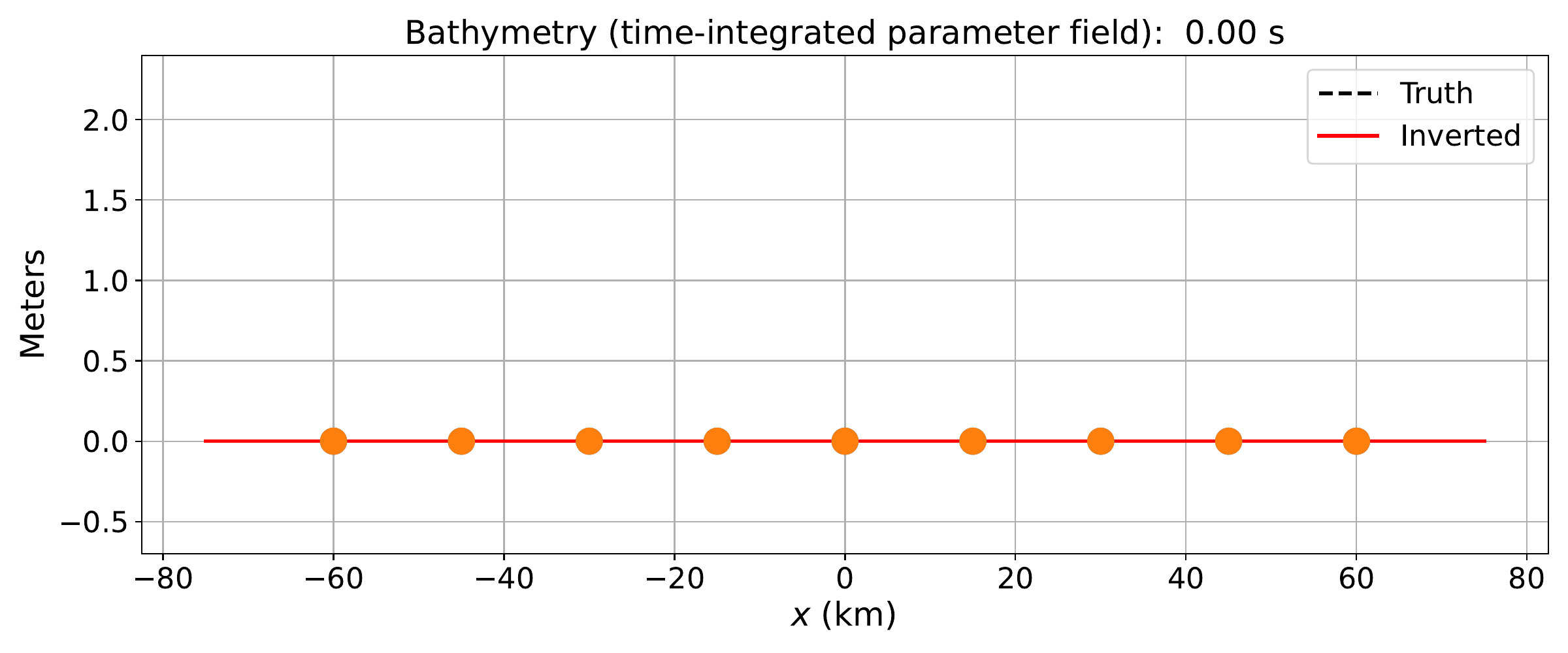

Inferred seafloor motion (mean and uncertainty)

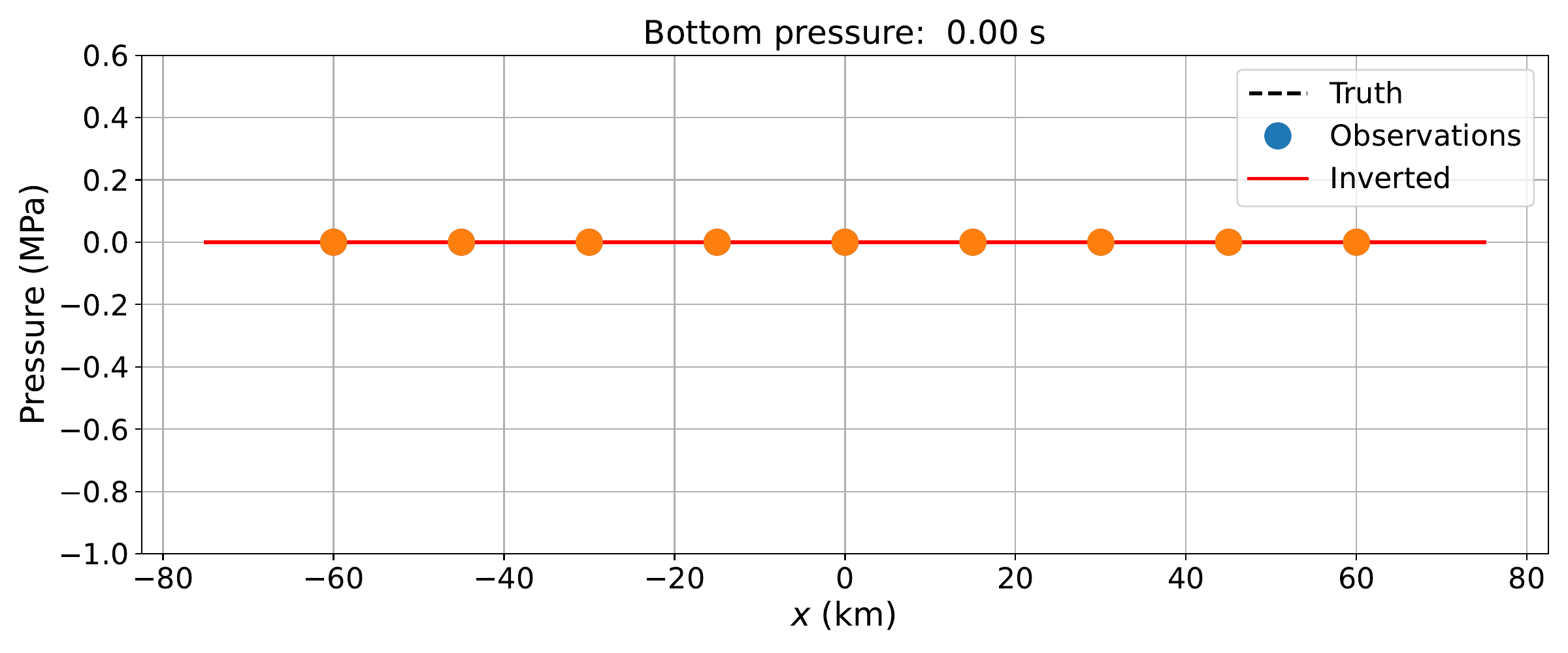

Reconstructed sea bottom pressure

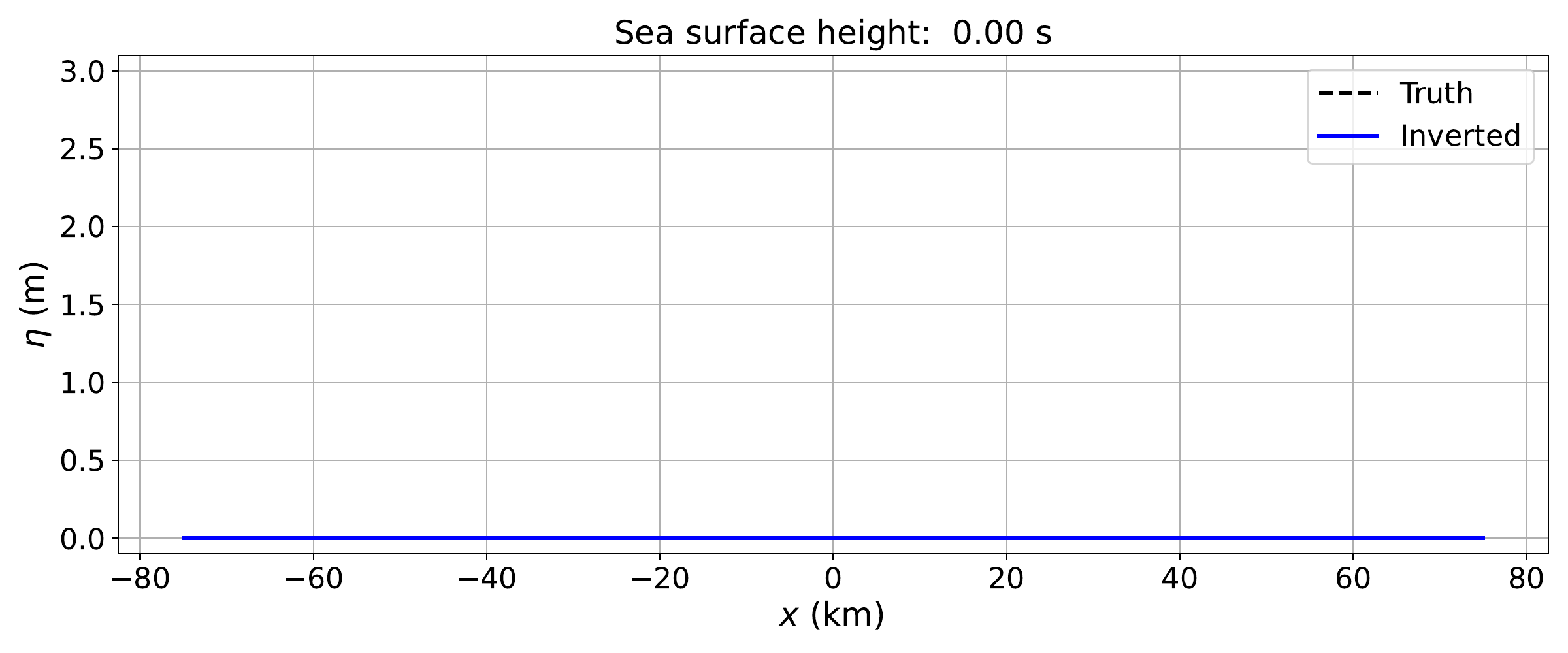

Reconstructed surface gravity wave

Bayesian Inverse Problem

• Bayes Rule: \(\text{d}\mu_{\text{post}} \propto \pi_{\text{like}}(d|m) \text{d}\mu_{\text{prior}} \)
• Goal: determine posterior measure \(\mu_{\text{post}}\)
• \(m\): model parameters — spatiotemporal field: \(\frac{\partial b}{\partial t} (\boldsymbol{x},t)\)
• \(d\): pressure obs. — pointwise in space and time: \(\left\{p(\boldsymbol{x}_i, t)\right\}_{i=1}^{N_d}\)
• Parameter-to-Observable (p2o) Map: \(\mathcal{F}: m(\boldsymbol{x},t) \mapsto d(\boldsymbol{x}_i,t)\)

Eigenvalues of \(\mathbf{F} \mathbf{F}^*\) for a representative case with ~132M parameters and ~25K data points.

Linear Inverse Problem, Gaussian Prior

Gaussian Prior with Matérn Covariance:\[m \sim \mathcal{N}(m_{\text{prior}}, \Gamma_{\!\text{prior}}), \quad \Gamma_{\!\text{prior}} \coloneqq \left( \alpha_1 I - \alpha_2 \Delta_{\text{2D}} - \alpha_3 \partial_t^2 \right)^{-2}\]

Likelihood: \(\pi_{\text{like}}(d|m) \propto \exp\left(-\frac{1}{2} \|\mathcal{F}m - d\|_{\Gamma_{\!\text{noise}}^{-1}}^2\right)\)

Observations: \(d = \mathcal{F}m + \nu, \quad \nu \sim \mathcal{N}(0, \Gamma_{\!\text{noise}})\)

Posterior:

Finding the MAP Point

• \(\Gamma_{\!\text{post}}^{-1} \eqqcolon \mathcal{H} \) is the Hessian (of negative log-posterior).
• Each matrix-free Hessian action requires 1 Forward and 1 Adjoint PDE solve.
• Finding \( m_{\text{map}} \) with CG requires \(\text{rank}(\mathcal{H})\) Hessian actions¹.
• For hyperbolic systems, \(\mathcal{H}\) can have high rank \(\Rightarrow\) many PDE solves
• Cascadia Tsunami Problem:
  • param. spatial DoFs: \(N_m\sim 10^6\), # of sensors: \(N_d\sim 10^2\), time steps: \(N_t\sim 10^3\)
  • \(\Rightarrow\) \(\text{dim}(\mathbf{m}) \sim 10^{9}, \text{dim}(\mathbf{d}) \sim 10^5\) \(\Rightarrow\) \(\text{rank}(\mathbf{H}) \gtrsim 10^4\)
• ~1 hour / Hessian action \(\Rightarrow\) over 1 year to find \(m_{\text{map}}\)
• Useless. We need to find the MAP point in seconds.

¹Omar Ghattas, and Karen Willcox. "Learning physics-based models from data: perspectives from inverse problems and model reduction." Acta Numerica 30 (2021): 445-554.

Real-Time Inference

• Autonomous Dynamical System: evolution does not depend explicitly on independent variable (e.g. time)
  • Here: the mapping mapping \(m(\boldsymbol{x},t+\tau) \mapsto d(\boldsymbol{x}_i,t+\tau)\) is the same as the mapping \(m(\boldsymbol{x},t) \mapsto d(\boldsymbol{x}_i,t)\)
• Exploit (time) shift invariance of autonomous dynamical systems
  • Reduce computation and storage costs
• Split inversion into Offline and Online phases:
• Phase 1 (Offline): Construct p2o map from adjoint PDE solves
• Phase 2 (Offline): Compute compact representation of \(\Gamma_{\!\text{post}}\)
• Phase 3 (Online): Compute MAP point in real time
• Offline/Online decomposition allows us to exactly^* solve the inverse problem in real time using the high-fidelity model.

^*Exact up to discretization errors

Real-Time Inference

Phase 1 (Offline): Construct p2o map from adjoint PDE solves

• Recall: \( \mathbf{H} = \mathbf{F}^* \Gamma_{\!\text{noise}}^{-1} \mathbf{F} + \Gamma_{\!\text{prior}}^{-1}\)
• Shift invariance \(\Rightarrow\) \(\mathbf{F}\) is block lower-triangular Toeplitz
• Only one block column of \(\mathbf{F}\) needs to be computed/stored
• Adjoint PDE solved backwards in time with "source" at each observation point (~100 sensors)

\[ \mathbf{F} = \begin{bmatrix} F_{11} & 0 & 0 & \cdots & 0\\ F_{21} & F_{11} & 0 & \cdots & 0\\ F_{31} & F_{21} & F_{11} & \cdots & 0\\ \vdots & \vdots & \vdots & \ddots & \vdots\\ F_{N_t,1} & F_{N_t-1,1} & F_{N_t-2,1} & \cdots & F_{11} \end{bmatrix}, \quad F_{ij} \in \mathbb{R}^{N_d \times N_m} \]

Real-Time Inference

Phase 2 (Offline): Compute compact representation of \(\Gamma_{\!\text{post}}\) (through Sherman-Morrison-Woodbury formula)

Phase 3 (Online): Compute MAP point in real time

• Both rely on fast applications of \(\mathbf{F}\) and \(\mathbf{F}^*\).
• Block Toeplitz structure \(\Rightarrow\) FFT-based Hessian actions (algorithm implemented on Multi-GPU cluster)
• ~200,000x speedup vs matrix-free Hessian action via forward and adjoint PDE solves for ~132M parameters and ~25K data points¹

¹8 Lonestar6 NVIDIA A100 40GB GPU nodes (3 GPUs/node) vs 2048 Frontera CLX nodes (56 cores/node).
S. V., M. Fernando, S. Henneking, & O. Ghattas, (2024). Fast and Scalable FFT-Based GPU-Accelerated Algorithms for Hessian Actions Arising in Linear Inverse Problems Governed by Autonomous Dynamical Systems. ArXiv. /abs/2407.13066

Real-Time Inference

• Block Toeplitz structure \(\Rightarrow\) FFT-based Hessian actions (algorithm implemented on Multi-GPU system)
• ~200,000x speedup vs matrix-free Hessian action via forward and adjoint PDE solves for ~132M parameters and ~25K data points

Left: Single GPU performance; Right: Weak scaling on up to 48 GPUs

Phase 2: Compute Compact Representation of \(\Gamma_{\!\text{post}}\)

• Sherman-Morrison-Woodbury formula applied to \(\Gamma_{\!\text{post}}\): \[ \begin{alignat*}{2} \Gamma_{\!\text{post}}&=&&\left(\mathbf{F}^* \Gamma_{\!\text{noise}}^{-1} \mathbf{F} + \Gamma_{\!\text{prior}}^{-1}\right)^{-1}\\ &=\Gamma_{\!\text{prior}}\Big(I - \mathbf{F}^*&&\underbrace{\textcolor{BF5700}{\Big(\Gamma_{\!\text{noise}} + \mathbf{F}\Gamma_{\!\text{prior}}\mathbf{F}^*\Big)}}_{}^{\textcolor{BF5700}{\mathbf{K}}}\vphantom{a}^{-1}\mathbf{F}\Gamma_{\!\text{prior}}\Big) \end{alignat*} \]
• Inversion operation shifted from a matrix of size \(N_m\times N_m\) to a matrix of size \(N_d\times N_d\)
• \(\textcolor{BF5700}{\mathbf{K}}\) is a dense matrix of size \(\sim 10^5\times 10^5 \Rightarrow\) Prefactorize
• Pointwise Variance: \(\text{diag}(\Gamma_{\!\text{post}})\)
  • Precompute with stochastic estimators¹
  • Subsample and interpolate on parameter grid

¹Eric Hallman, Ilse CF Ipsen, and Arvind K. Saibaba. "Monte Carlo methods for estimating the diagonal of a real symmetric matrix." SIAM Journal on Matrix Analysis and Applications 44.1 (2023): 240-269.

Phase 3 (Online): Compute MAP Point in Real Time

Test problem: \(N_m = 263\text{K}, N_d = 49, N_t = 500\) (~132M parameters, ~25K data) running on 8 Lonestar6 nodes (24 GPUs)

\( \mathbf{m}_{\text{map}}=\Gamma_{\!\text{prior}}\left(\mathbf{I} - \mathbf{F}^*\textcolor{BF5700}{\mathbf{K}}^{-1}\mathbf{F}\Gamma_{\!\text{prior}}\right)\mathbf{F}^*\Gamma_{\!\text{noise}}^{-1}\mathbf{d} \)

^*For priors with spatial correlation only, \(\Gamma_{\!\text{prior}}\mathbf{F}^*\) is also block-triangular Toeplitz.

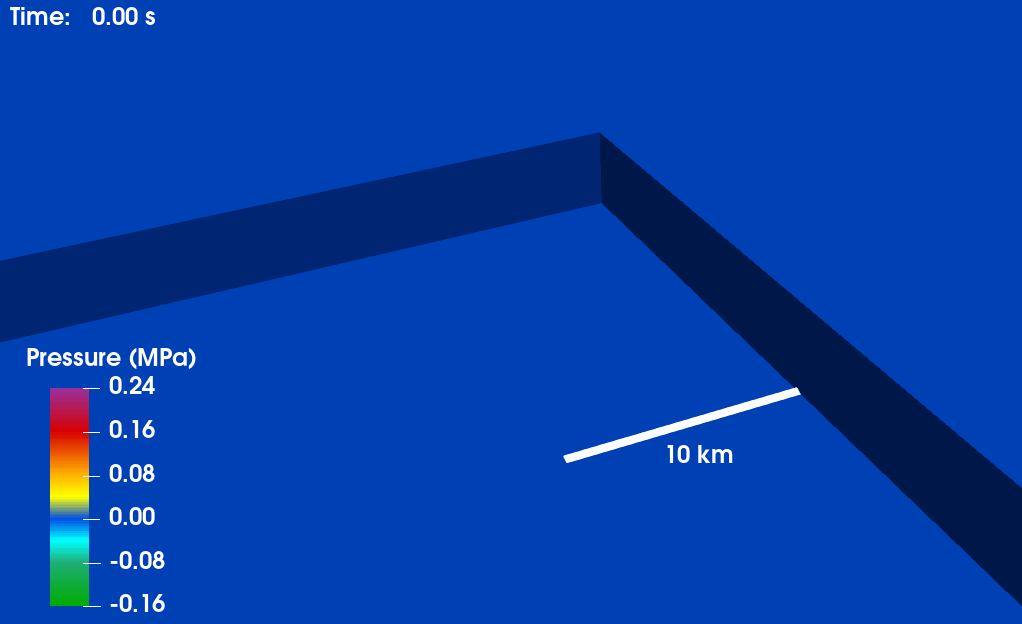

3D Inversion: True Pressure Field

3D Inversion: Sensor Observations

Sea bottom pressure (no noise)

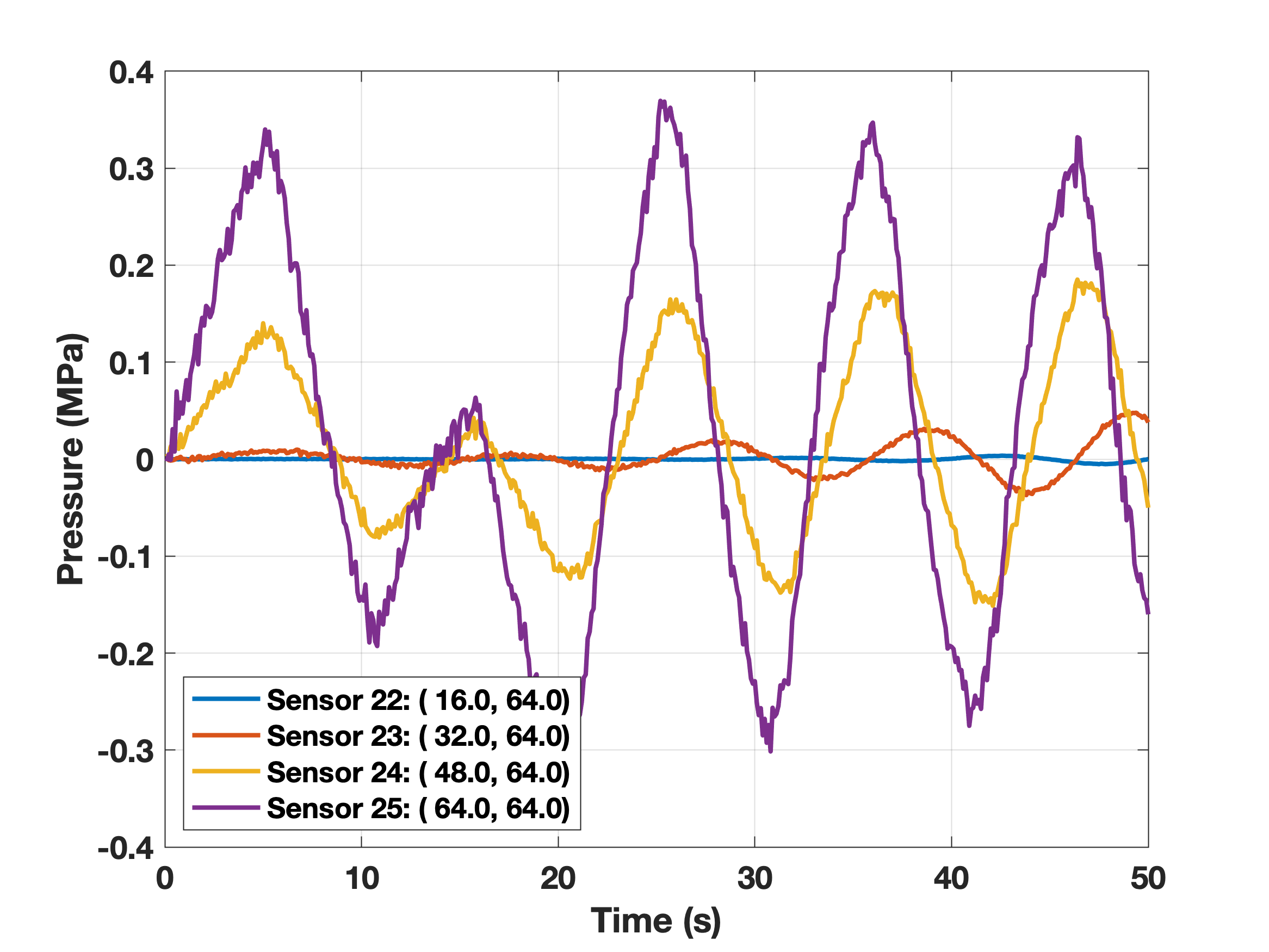

Observations with 6% relative noise

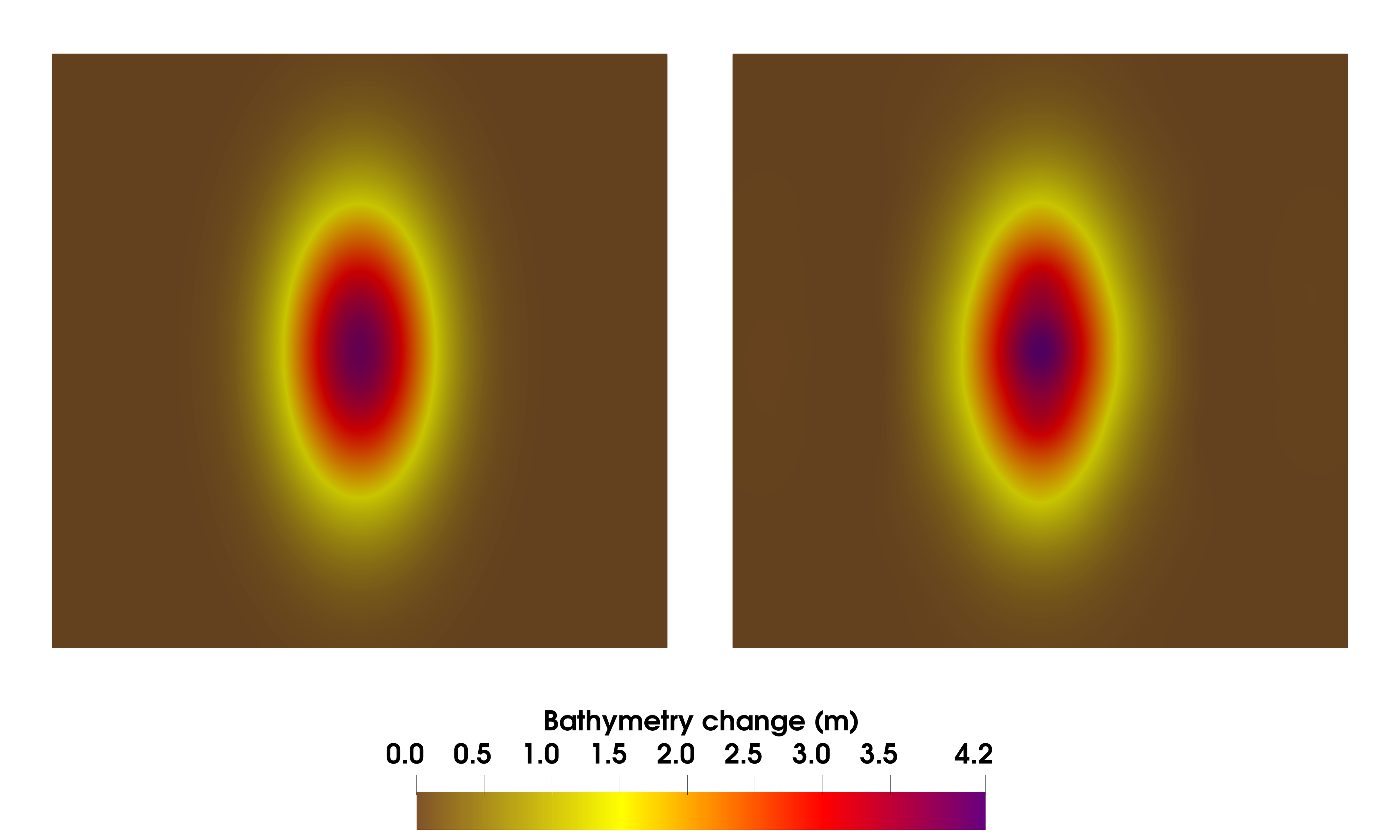

3D Inversion Results: Bathymetry

Left:True total bathymetry change (time-integrated parameter field); Right: Total bathymetry change inferred from synthetic observations with 6% relative additive noise

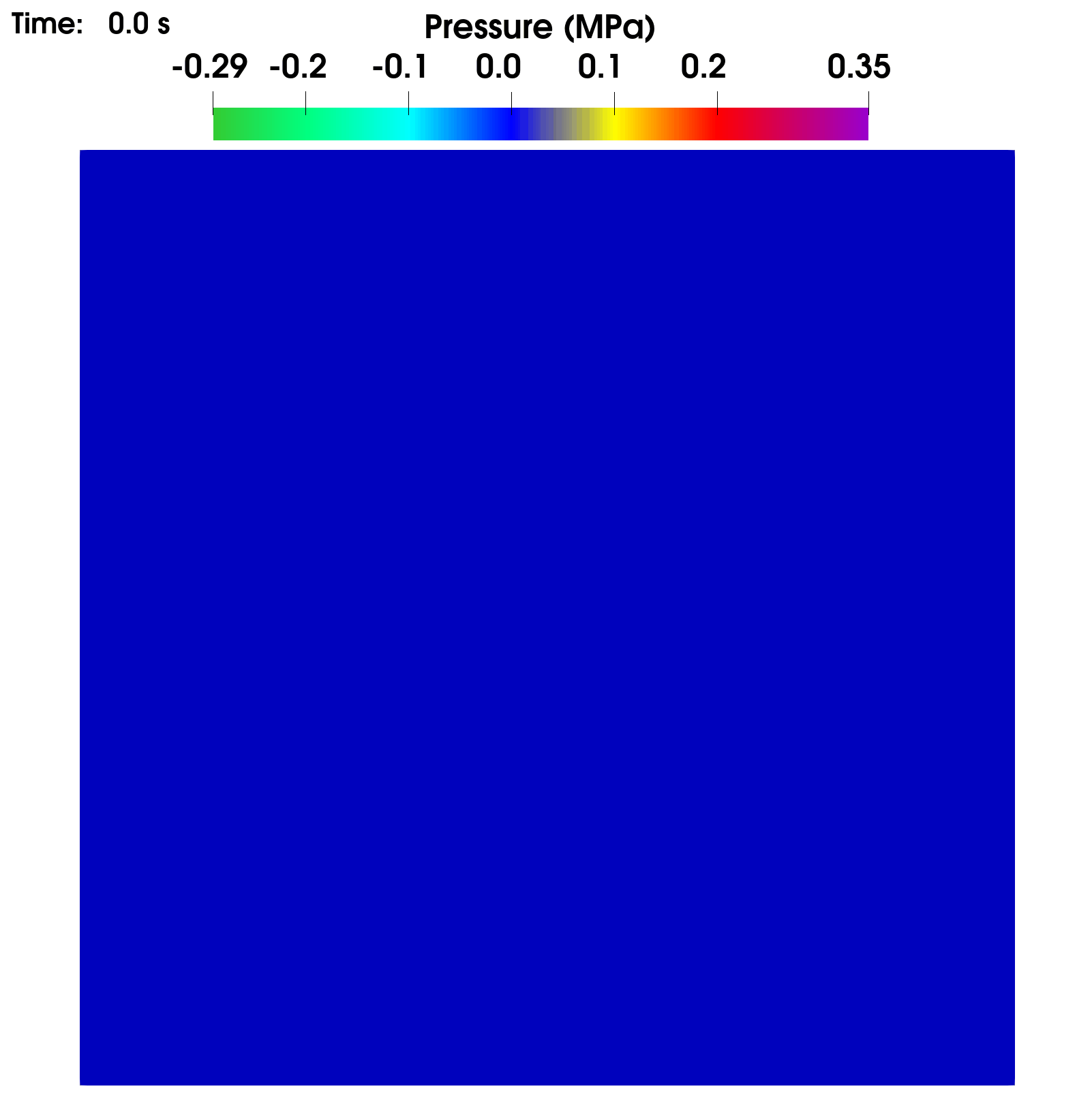

3D Inversion Results: Pressure

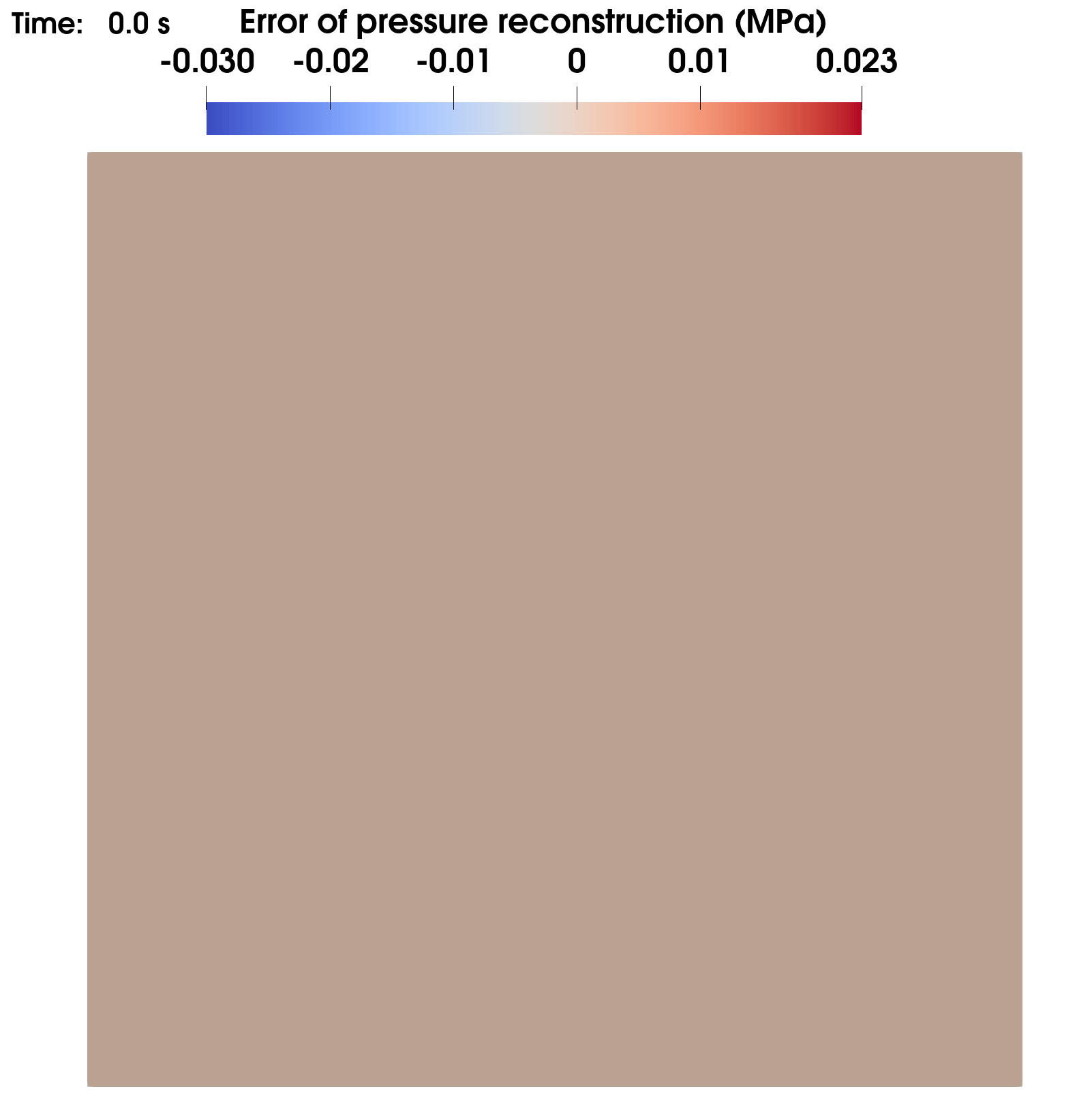

Left: Sea bottom pressure reconstructed with the parameter field inferred from synthetic observations with 6% relative additive noise; Right: Difference between reconstructed and true pressure field

3D Inversion Results: Surface-Gravity Wave

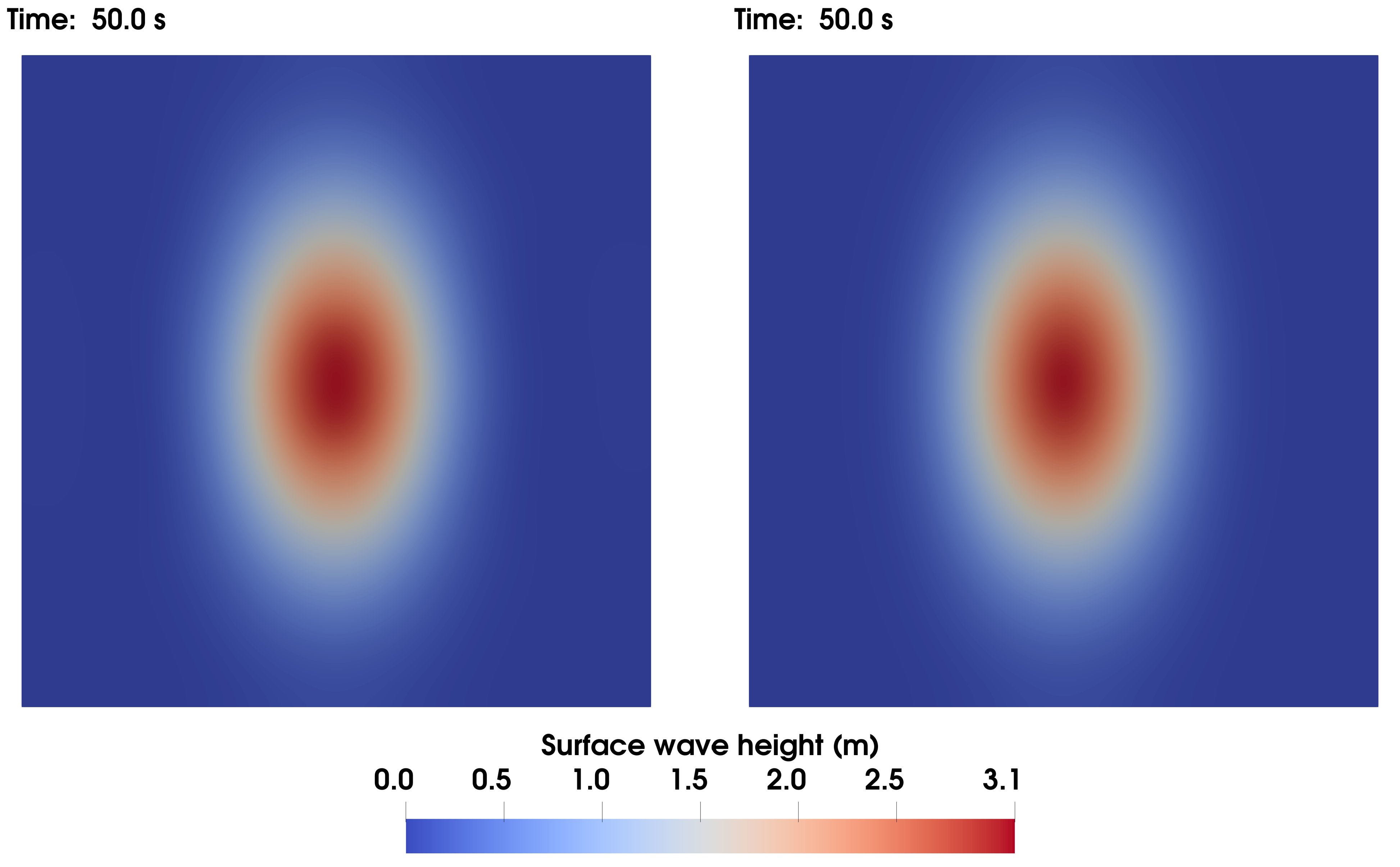

Left: Surface gravity wave obtained from true parameter field; Right: Surface-gravity wave reconstructed with the parameter field inferred from synthetic observations with 6% relative additive noise

Summary

• Conclusions:
• Exploit autonomous structure of the Hessian to enable real-time inference at extreme scale
• Fast matvec algorithm speeds up Hessian action by ~200,000x
• Solve inverse problem with ~132M parameters and ~25K data points in 0.057s
• Other applications: seismic source inversion, contaminant transport

• Future Work:
  • Goal-oriented UQ
  • Data-driven priors


• Acknowledgements:
  • NSF Graduate Research Fellowship grant: DGE 2137420
  • Texas Advanced Computing Center (TACC)
